High Frequency Welding Machinery

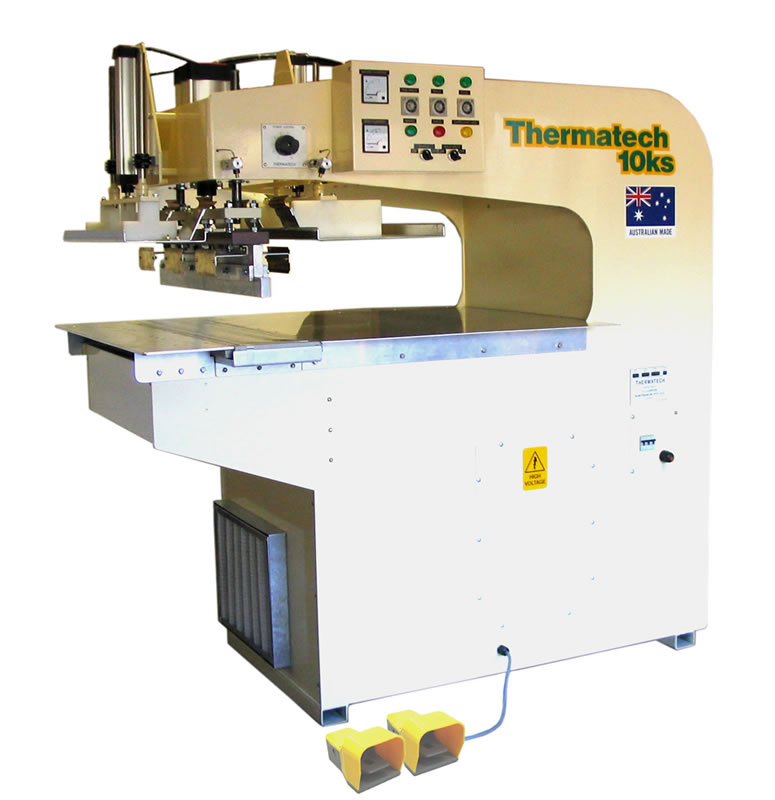

	Thermatech 10ks / 15ks	High Frequency Welding Machine

	Standard features on all Thermatech machines are as follows:

	Automatic arc suppresser circuit Calibrated power control (Eye level) Dual heavy duty foot pedals Progressive press control AS 2772 compliance (Heath & Safety) Omron control electronics Festo air equipment	Filament interlocked blower Anode and grid current meters Large aluminum work table Cavity RF generator Australian made

	Specifications

	Output	10 kw / 15kw
	Input	3 phase - 20 amp (10kw)
	Throat depth	1000 mm & 1200mm
	Main cylinder	125 x 200 mm
	Press	Down acting with twin 20mm guides
	Timers	Pre weld, weld and cool 'Omron' timers
	Rectifiers	Solid state silicon
	Arc suppresser	Instantaneous relay
	Power control	Single calibrated dial
	Dimensions	1000(w) x 1900(d) x 1800(h) mm
	Table height	1100 mm

	Warranty	12 months parts and labour

	Thermatech 20ks	High Frequency Welding Machine

	Specifications

	Output	20 kW
	Input	3 phase - 32 amp
	Throat depth	1500 mm or 1800mm
	Main cylinder	160 x 200 mm
	Press	Down acting with twin 40mm guides
	Timers	Pre weld, weld and cool 'Omron' timers
	Rectifiers	Solid state silicon
	Arc suppresser	Instantaneous relay
	Power control	Single calibrated dial
	Dimensions	1200(w) x 2800(d) x 1900(h) mm
	Table height	1100 mm

	Warranty	12 months parts and labour

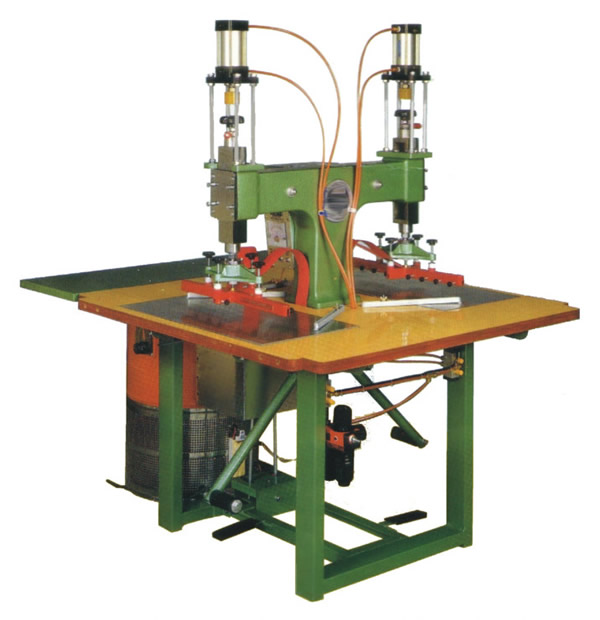

	Hisen Welders	Imported HF Welding Machines

We also import Hisen welding machinery which is suitable for the manufacture of smaller items. eg. mail bags, binders, small banners and eyelets.

These machines feature a dual head system, allowing for two people to use the one machine.

Specifications

Model	HDW 401-P	HDW 501-P	HDW 801-P
Max. output	4 kW	5 kW	8 kW
Max. input	8 KVA	10 KVA	16 KVA
Stroke	50mm	50mm	50mm
Bottom platen	350x700mm	350x700mm	400x800mm
Operation	All above are foot operated and pneumatic

More models in the Hisen range
Click here


For more information on Hisen welders visit their website, where you can also view other machines in the Hisen range.

www.hisen.com.tw/index-e.htm (English version)
